Western Electric 202 - Copper
Western Electric 202 - Copper

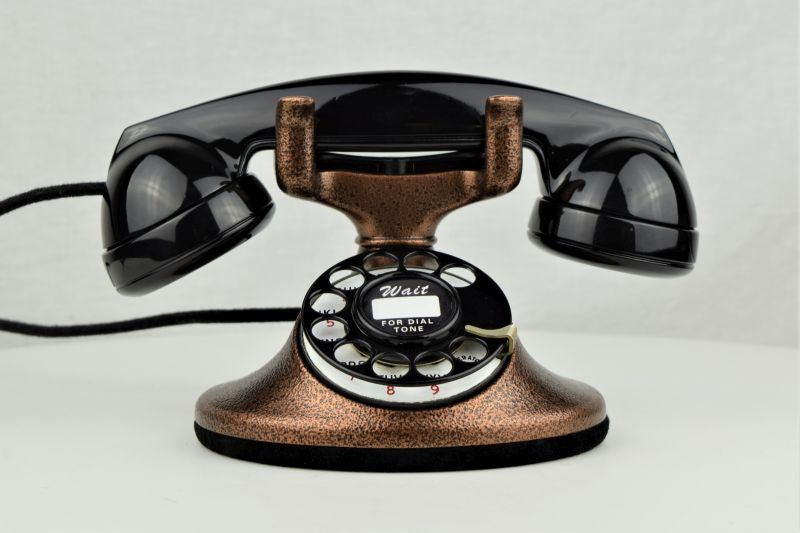

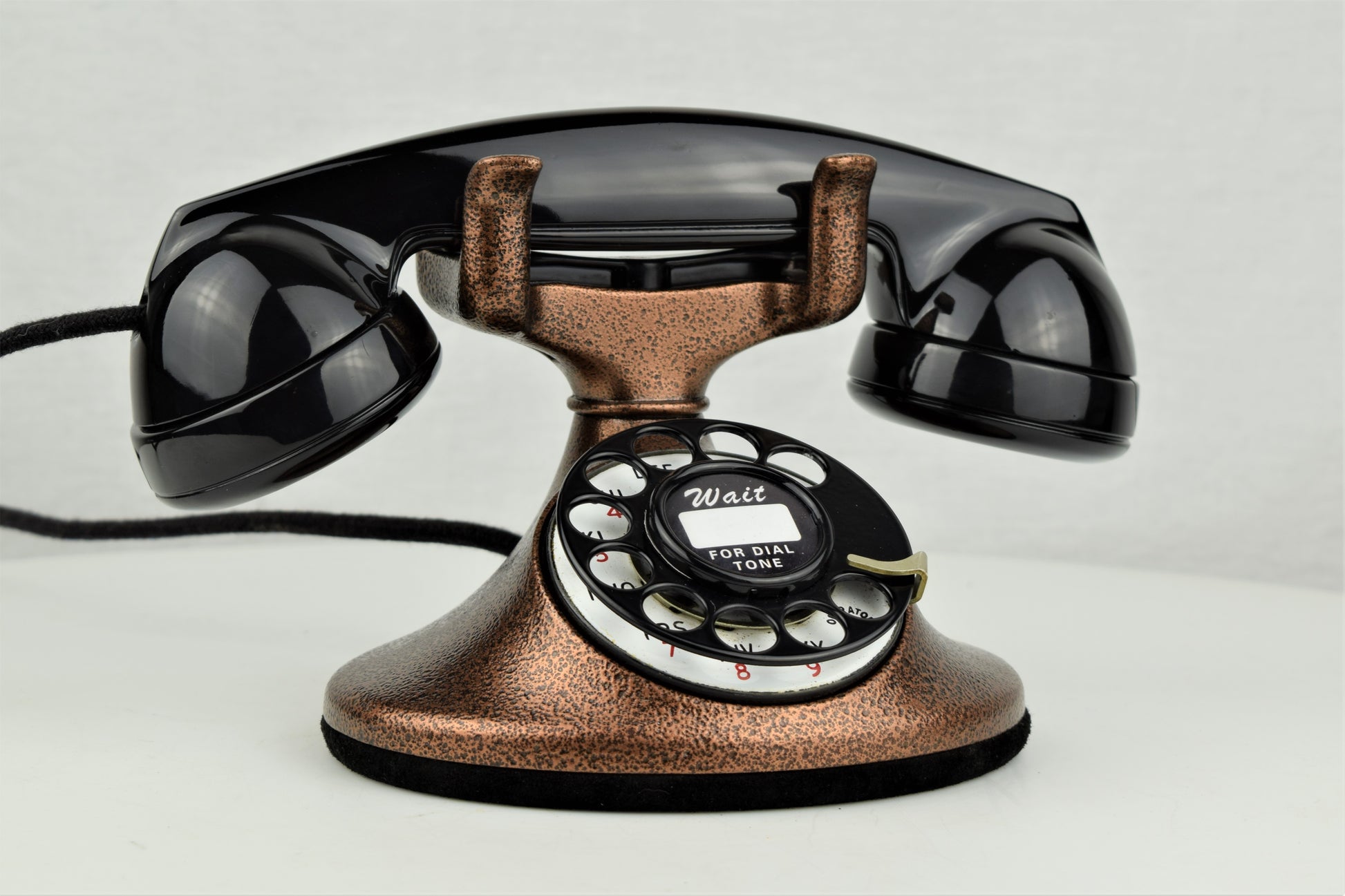

Western Electric Model 202. F-1 Handset, No 5 Dial, Circa 1930-1937. Network included.
The Western Electric and Northern Electric 102/202 series telephones were the first widely distributed phones which adopted the use of a single handset rather than a separate transmitter and receiver. The Model 102 - B1 mount was available from 1928 - 1930 and is characterized by a round base and raised dial. In 1930 the Model 102 was modified with an elongated ovoid base. This revised mounting scheme was known as D1. At the same time the Model 202 - D1 was introduced on the same chassis with a new "antisidetone" wiring scheme. The dial on the D1 chassis was recessed into the front of the phone as opposed to sitting on the frame as with the "102 V B1 mount". Model 102/202 - D1 telephones were manufactured until 1938. Like the candlestick phone, the 102 and 202 contained only the switchhook and switch. The network and ringer were contained in a subset which was mounted on the wall. This 202 is been upgraded with a modern network in the base that eliminates the need for a separate subset. Due to space limitations in the chassis, there is no ringer internally, although external ringers are readily available.
The Restoration Process

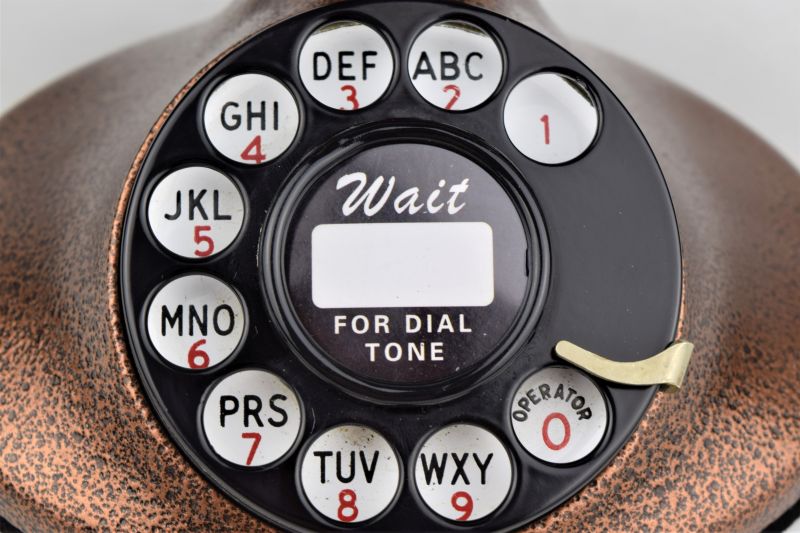

Dial – The dial has been fully disassembled, cleaned, lubed and timed to ensure years of trouble free service. The outer edge of the dial has been stripped and repainted with a gloss black enamel. Unless the dial is removed, this is something you will rarely ever even see, but this is how it would have come from the factory. The number plate has been cleaned and a perfectly matching overlay has been applied. The finger wheel has been sandblasted and powder coated with a semi-gloss black finish. A brand new die cut dial card and acetate cover have been added as well
Cords – The phone has been outfitted with brand new cloth covered cords that are made in house on the same type of equipment originally used by the phone companies. They look amazing. You can choose from either black or brown cloth cords. The line cord has a modular connection to facilitate a modern connection to your wall jack.

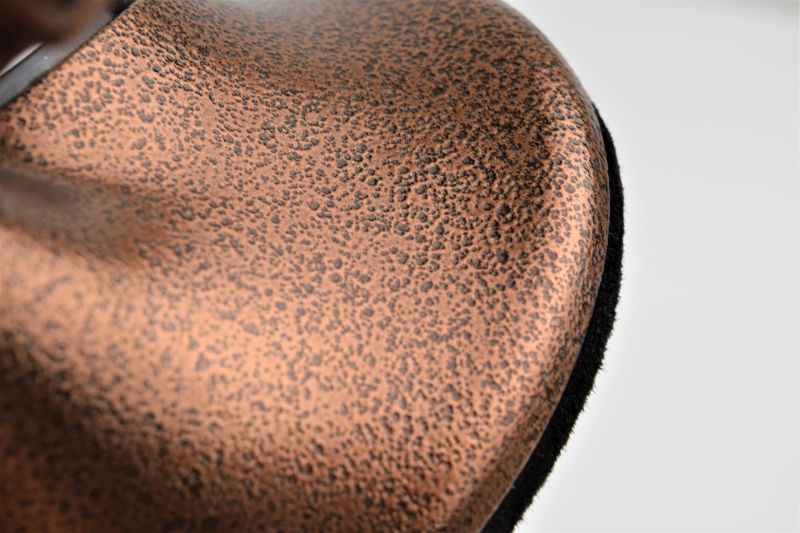

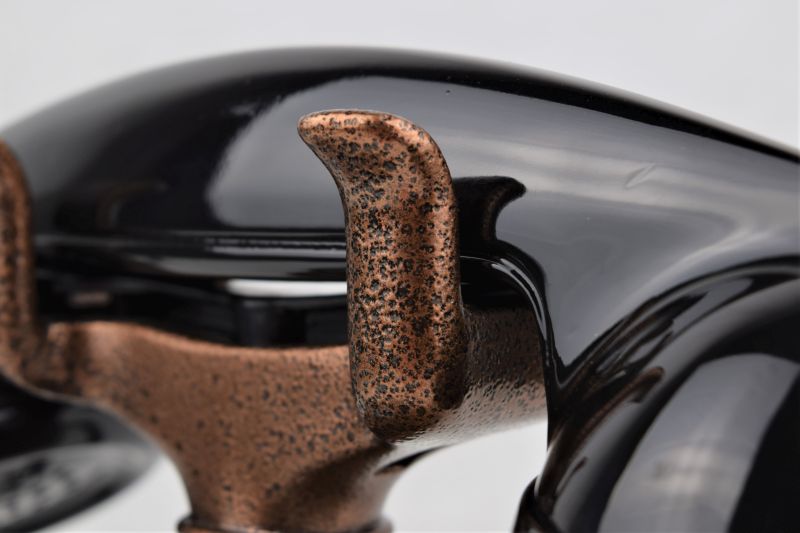

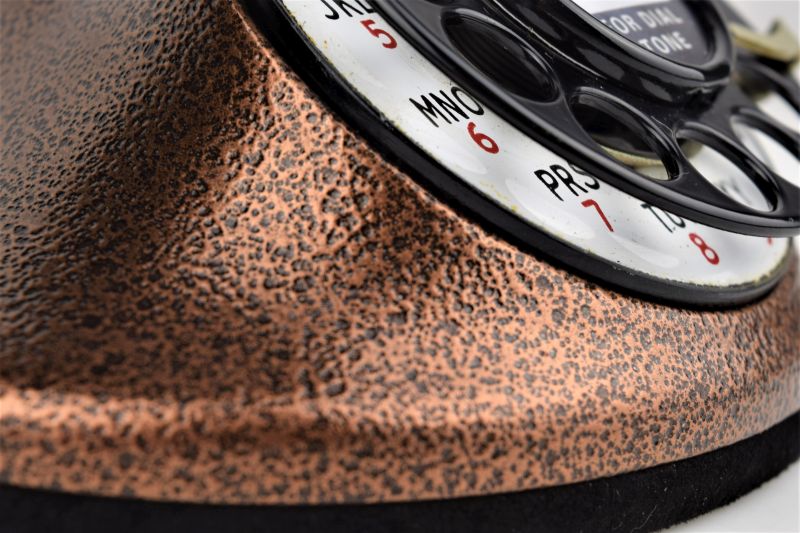

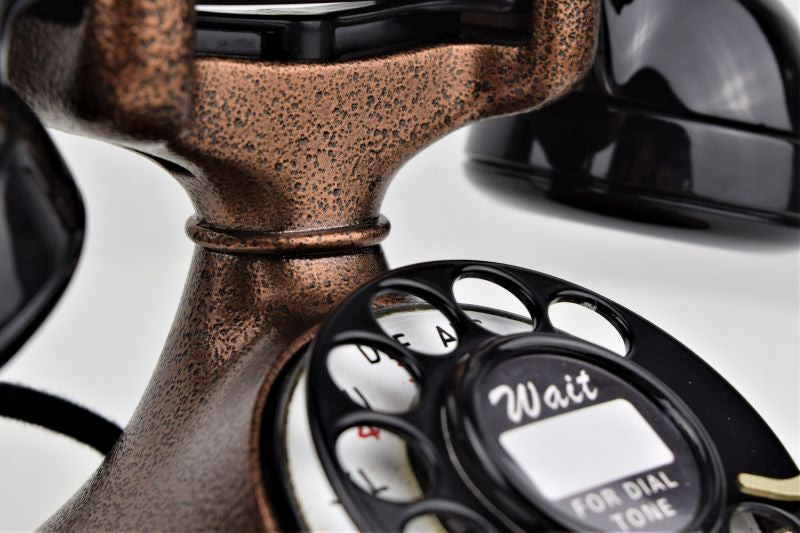

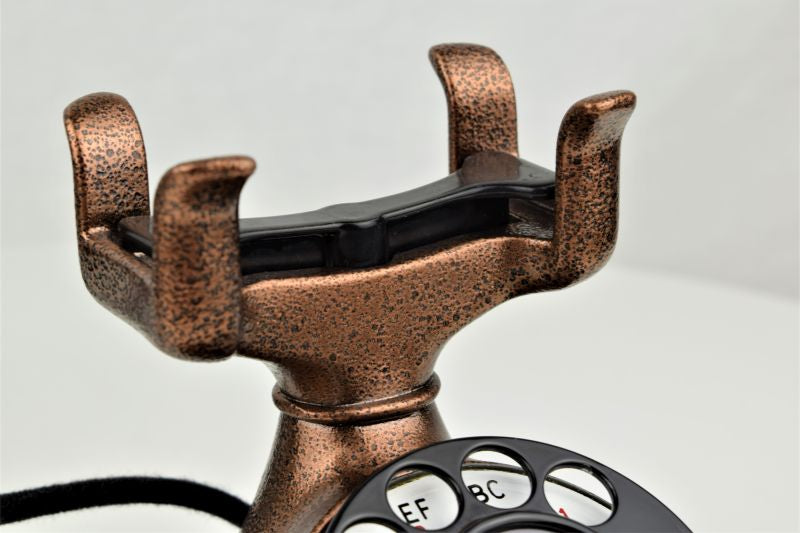

Shell – The shell has been stripped down and sandblasted using a glass grit and powder coated in a unique copper hammertone. This give the phone a one of a kind look that is sure to be the focal point of any room its proudly displayed in.
Handset – The F1 handset has been ultrasonically cleaned to get all embedded debris out. It is then sanded through a multi-step restoration process which includes sanding with 400, 800, 1000, 2000 grit and buffed back to its beautiful original shine.
Network – The 202 is outfitted with an AE mini network. This allows the telephone to connect to a modern network without the need for a subset, although a subset with ringer is available.
Base – The base is carefully sand blasted and rewrapped with super soft pig skin suede leather to ensure it does not damage the table it proudly sits on.
The phone goes extensive testing before to ensure it is in perfect working condition prior to shipping.
Number 5 - The predominant dial of the 40's and 50's was replaced by the number 6 for a more universal fit. The number 5 dial features a "whiir" sound upon its return and a good weight for dialing.
Number 4 - This is the first 5 contact, 3 inch dial. The real joy of the dial lies in the highly sought after "clickity-clack" sound that was eliminated with the introduction of the number 5. What was eliminated from customer complaints, is now one of the features that collectors look for most in hunting out the vintage phones.
We are now also offering the option to have your telephone number printed on the dial card in the center of your fingerwheel. Select this option with the drop down menu, and type in the request in the comments section of the order or email us at Oldphoneguy@Oldphoneworks.com
