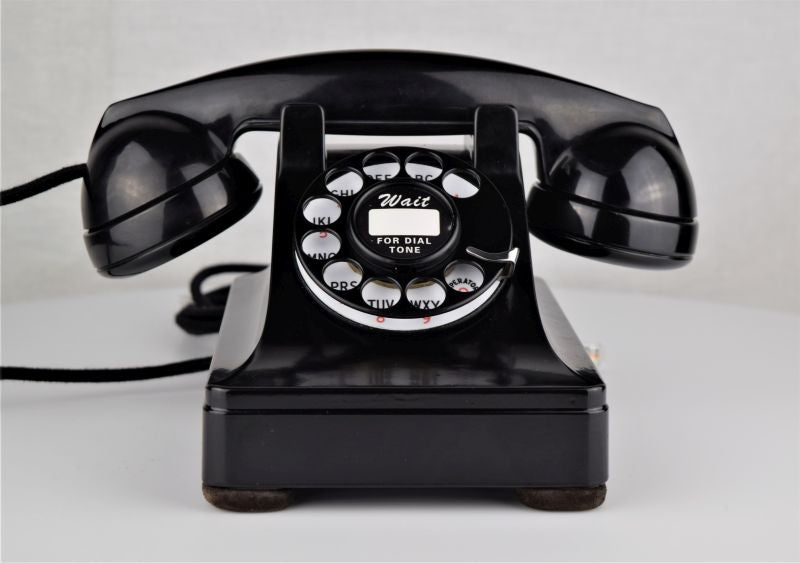

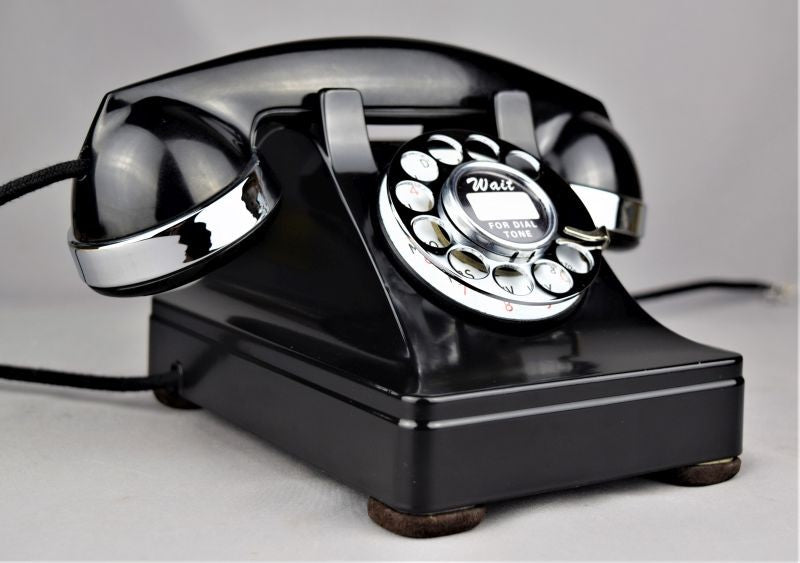

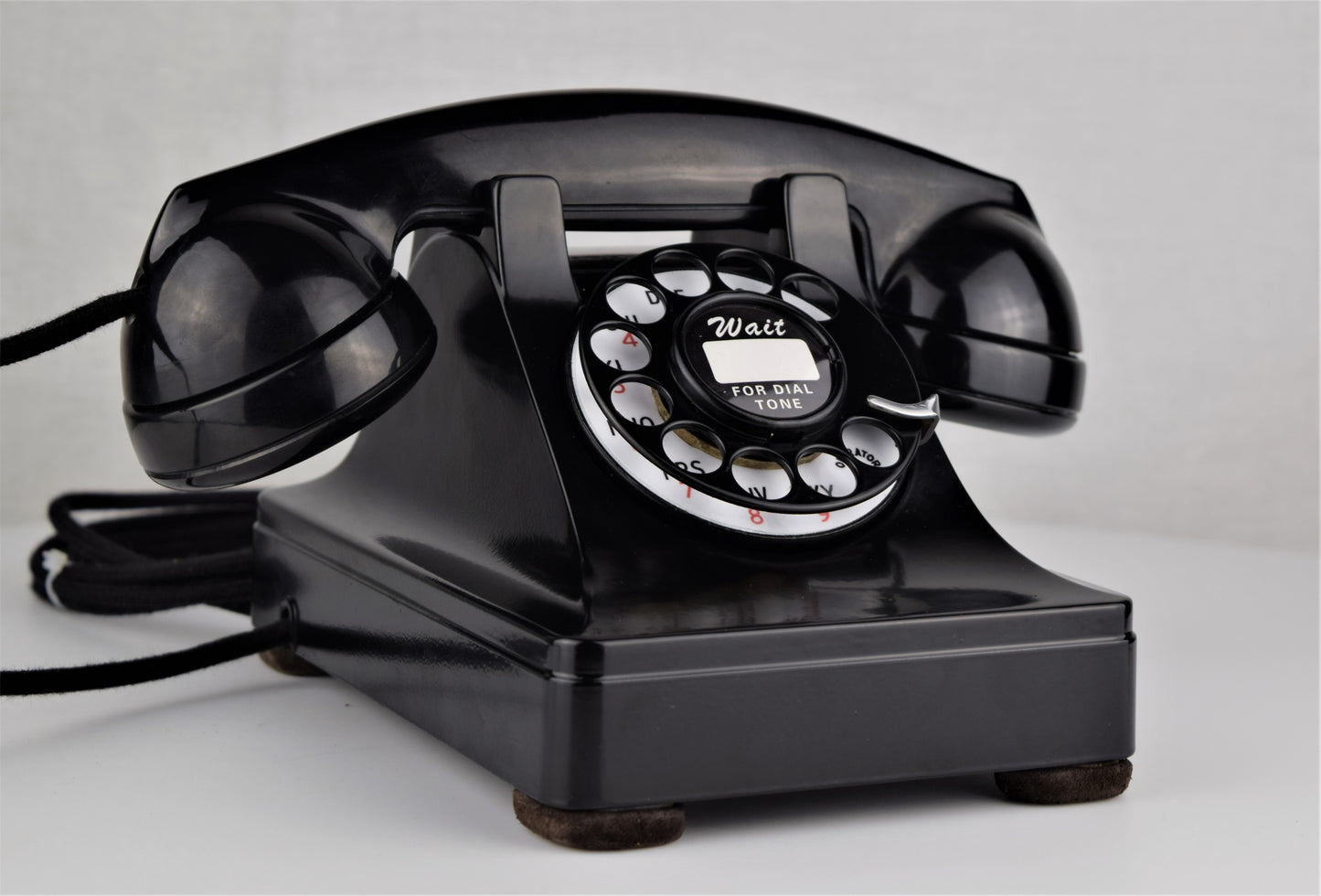

Western Electric 302 - Black - Post War - Plastic Case

Northern or Western Electric Model 302-plastic case. Circa 1940s. Internal Ringer.

This wonderful working example of 1930s design has an incredible gloss finish that will look great in your retro decorating scheme. What I love most about this phone is the great RRRING that will be sure to get the attention of everyone in your household!

The Model 302 desk telephone was introduced in 1937. Created by famed industrial designer Henry Dreyfuss, the first versions had a die-cast zinc housing and were changed during the War to a thermoplastic housing. The 302 series was the first subscriber desk telephone to contain the ringer and induction coil within the phone. Previous desk models required a separate subscriber set or bell box that was attached by a line cord. While the 302 series telephone is predominately found in black, it was also produced in nine colors. When the thermoplastic housings became the standard, the colors were molded in the plastic of that color rather than painted on as was the case of the die-cast phones. The Model 302 was manufactured until 1954 and during it's lifetime it was the workhorse of the phone system.

The Restoration Process

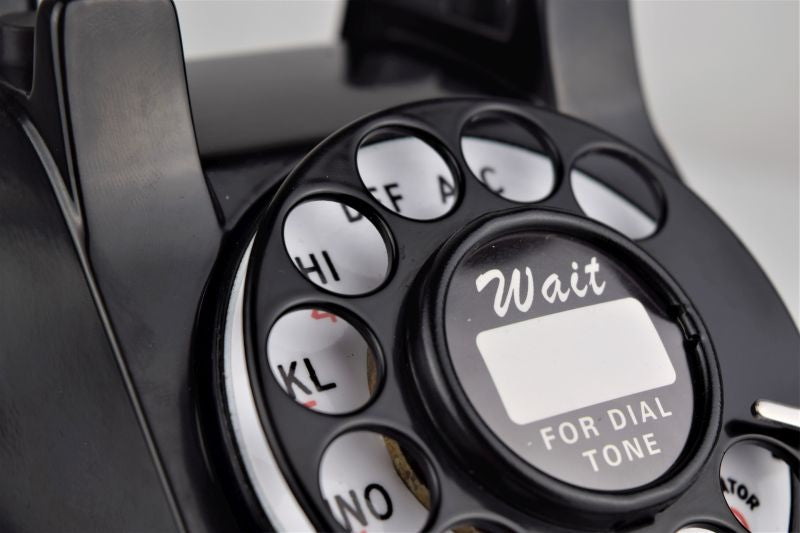

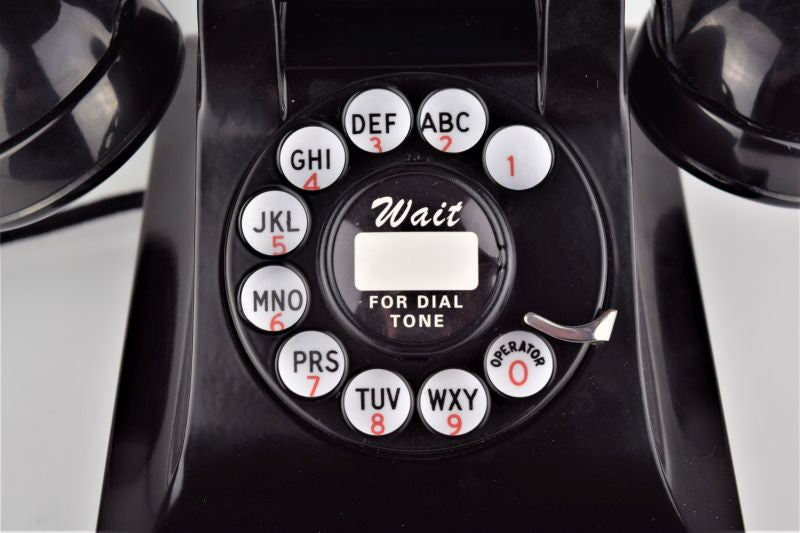

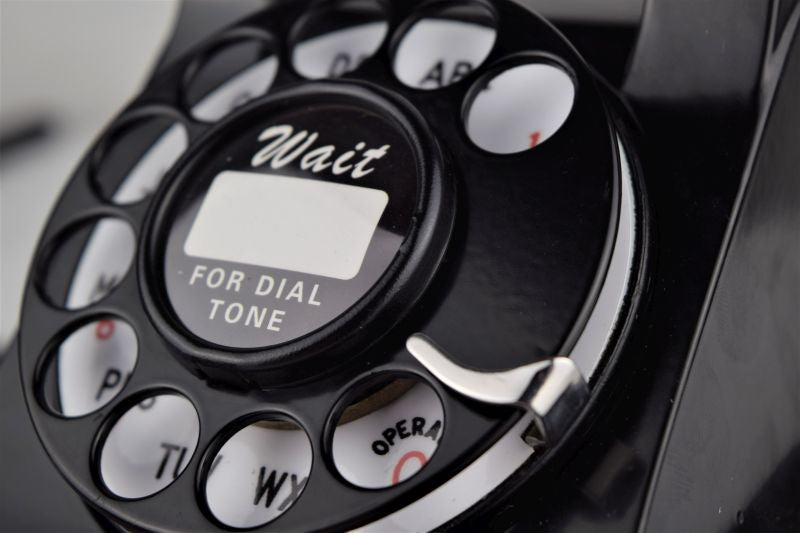

Dial – The dial has been fully disassembled, cleaned, lubed and timed to ensure years of trouble free service. The outer edge of the dial has been stripped and repainted with a gloss black enamel. Unless the dial is removed, this is something you will rarely ever even see, but this is how it would have come from the factory. The number plate has been cleaned and a perfectly matching overlay has been applied. The finger wheel has been sandblasted and powder coated with a semi-gloss black finish. A brand new die cut dial card and acetate cover have been added as well

Cords – The phone has been outfitted with brand new cloth covered cords that are made in house on the same type of equipment originally used by the phone companies. They look amazing. You can choose from either black or brown cloth cords. The line cord has a modular connection to facilitate a modern connection to your wall jack.

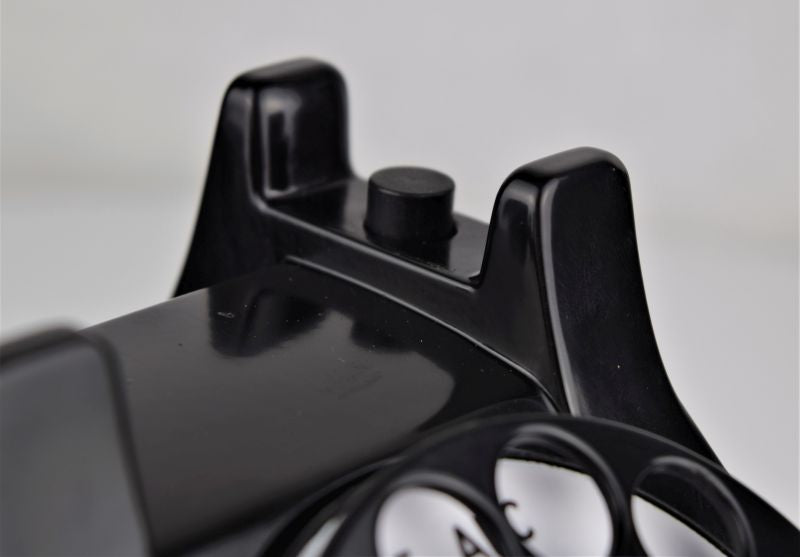

Shell – The shell has been painstakingly put through a multi-step restoration process which includes sanding with 400, 800, 1000, 2000 grit. This ensures that there are no scratches, dents or dings. The shell is them carefully buffed on our two step buffing wheels. This takes out the fine abrasions left by sanding and leaves the plastic with a smooth factory fresh finish. Finally we apply a three step plastic restoration compound. This leaves the plastic with a beautiful high gloss finish. Don’t be fooled by other plastic 302’s where they are simply painted, we have the real deal.

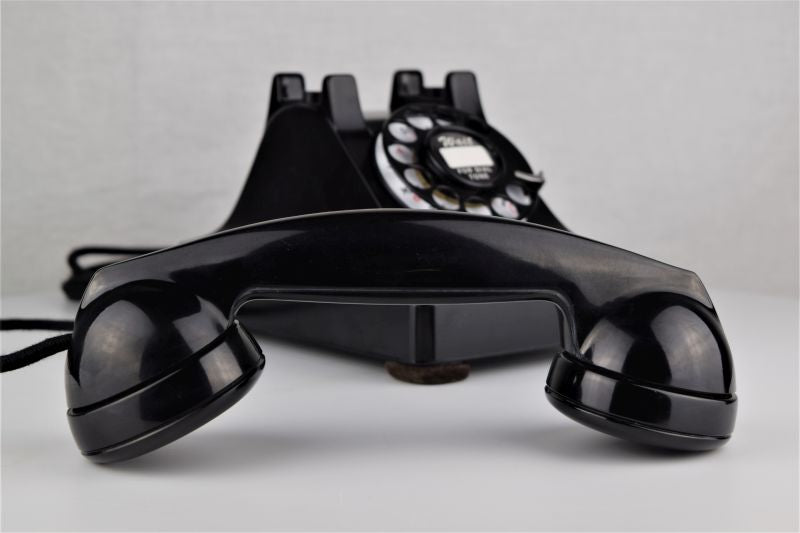

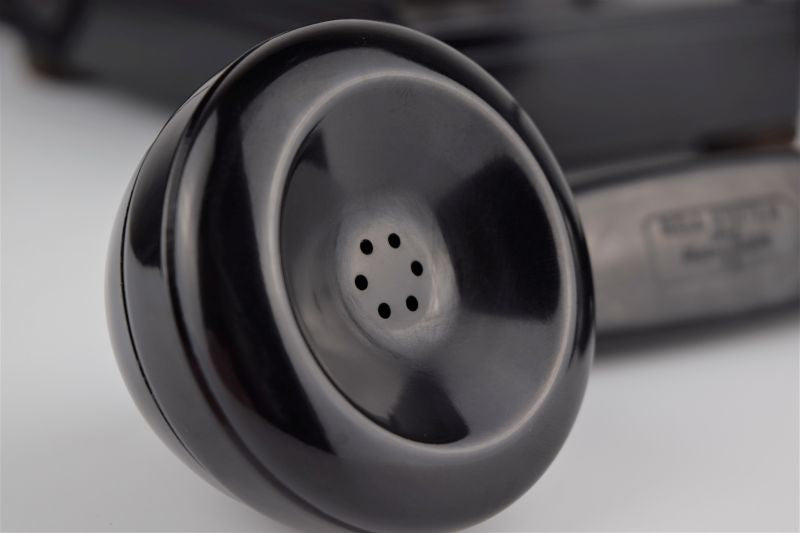

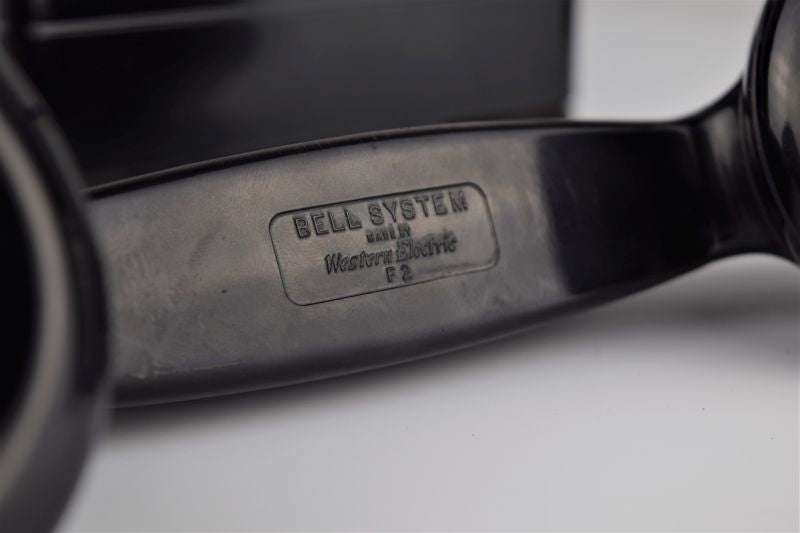

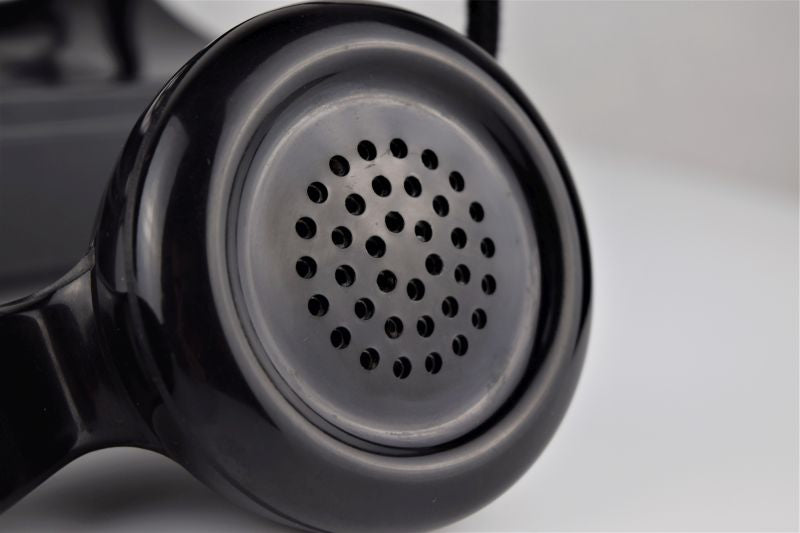

Handset – Handset has been ultrasonically cleaned to get all embedded debris. It is then sanded with the same process as the shell and buffed back to its beautiful original shine.

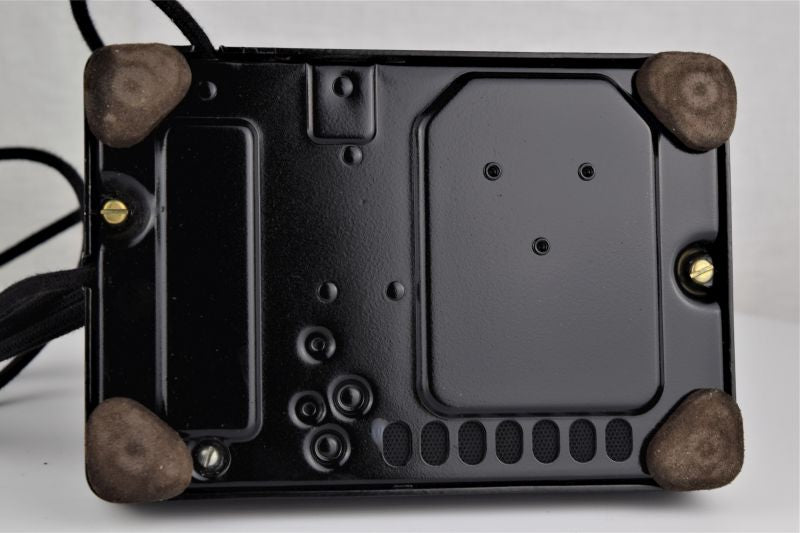

Base – The base is completely stripped of all its components and painted with a high gloss black. The components are then cleaned, tested and reinstalled.

Feet – The feet are disassembled and sand blasted. They are then rewrapped with super soft pig skin suede leather to ensure it does not damage the table it proudly sits on.

The phone goes through extensive testing before to ensure it is in perfect working condition prior to shipping.

Dial Options

Number 6 - default - The last technology jump for 3 inch dials. A smooth return and light weight for dialing highlight this choice. It is sturdily built and very reliable.

Number 5 - The predominant dial of the 40's and 50's was replaced by the number 6 for a more universal fit. The number 5 dial features a "whirr" sound upon its return and a good weight for dialing.

Number 4 - This is the first 5 contact, 3 inch dial. The real joy of the dial lies in the highly sought after "clickity-clack" sound that was eliminated with the introduction of the number 5. What was eliminated from customer complaints, is now one of the features that collectors look for most in hunting out the vintage phones.

We are now also offering the option to have your telephone number printed on the dial card in the center of your fingerwheel. Select this option with the drop down menu, and type in the request in the comments section of the order or email us at Oldphoneguy@Oldphoneworks.com We will include 4 different font options in with the purchase of this new offer. Here are two examples!

Do you currently have any rotary phones? If the answer is no, it is always a good idea to call your local phone company and check if they still support “pulse” dialing. If they do, you are all set to go. If they do not, your phone will not be able to place calls without a converter. We have internal converters that we install during assembly available for $79.95.

- Dials * and # from your rotary phone to access computerized services.
- Use legacy equipment on tone-only lines.
- Compatible with VOIP services.
- Provides last number redial functionality.
- Adds 7 programmable speed dial locations

As an alternative, we provide an option to use this phone as an extension of your cell phone. The XLink Bluetooth gateway is an device external to the phone that gets it’s power from a standard AC outlet. The cord from the phone will then connect to a phone jack on the gateway. When you pair the gateway to an active Bluetooth enabled cell phone, you will be able to use the vintage phone just like it was connected to a traditional landline. When someone calls your cell phone, the vintage phone will ring, and you will be able to dial out using the dial on the vintage phone. If you want to be able to call # and * using your rotary dial, you will also need to add the pulse to tone converter option.
